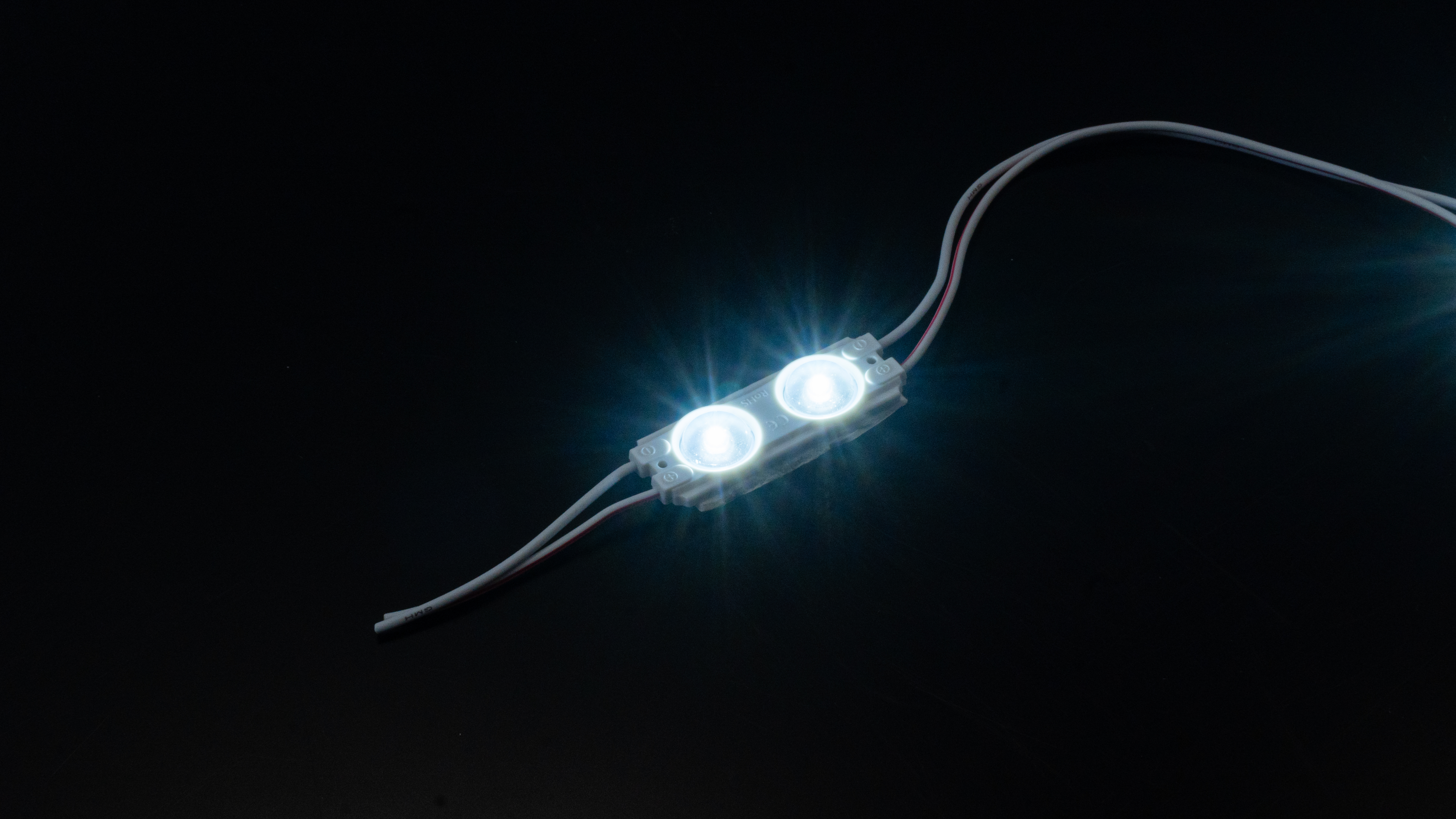

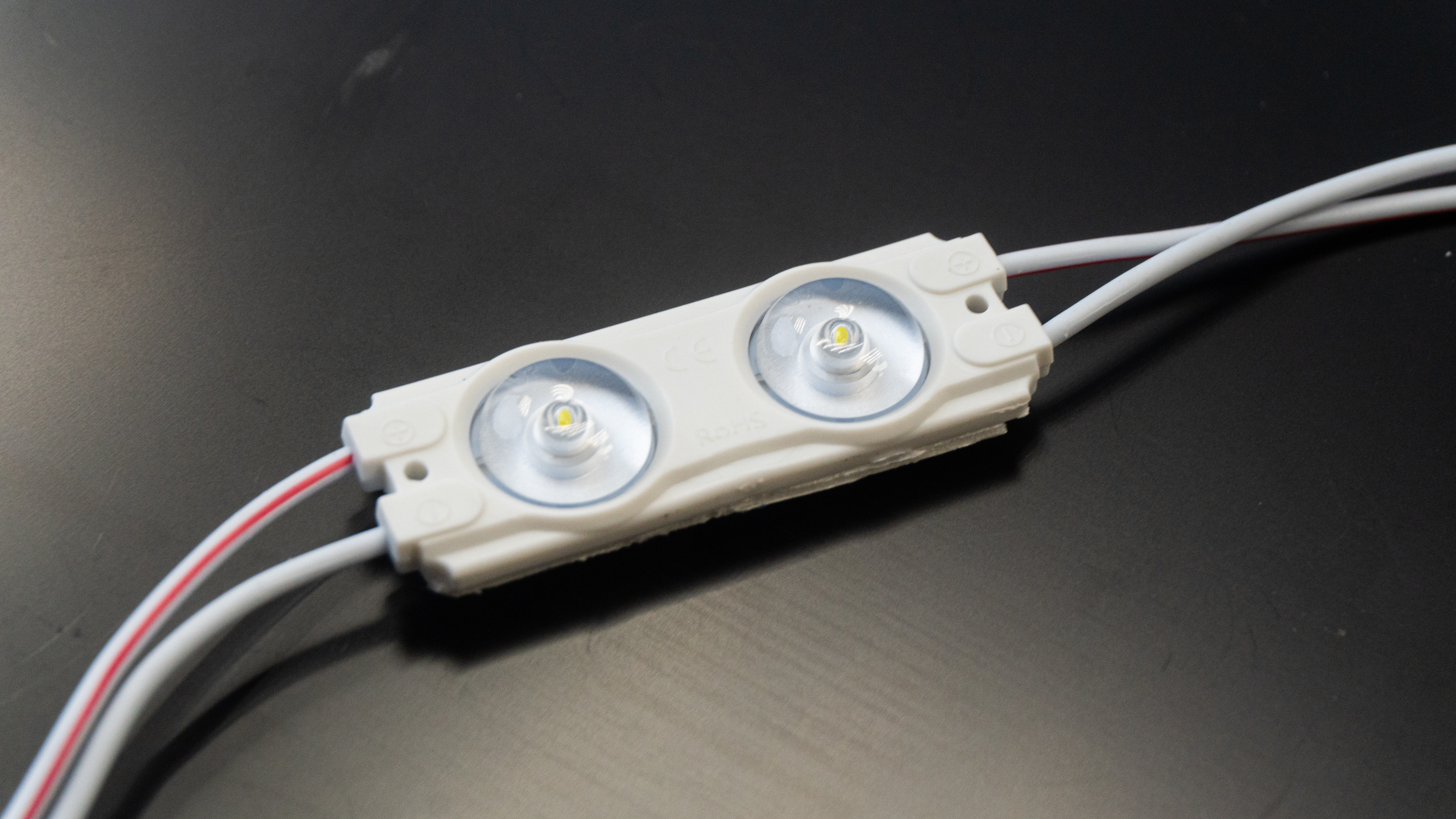

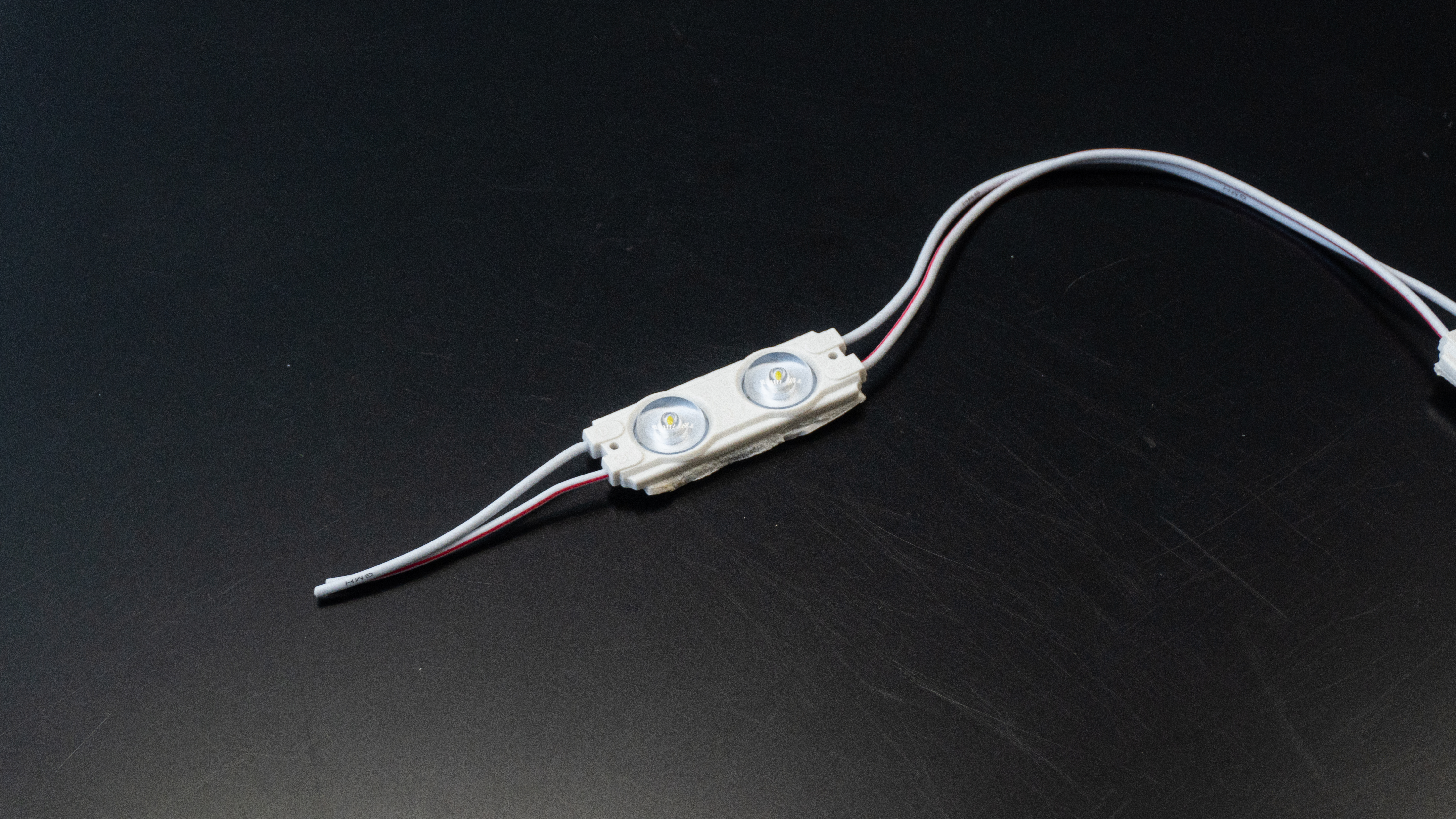

Lensed LED modules are used to illuminate three-dimensional letters and light boxes with a depth of 40 to 80 mm, while providing uniform illumination without spots due to the small height of the module housing and the latest 176-degree lens developed at our factory by Chinese engineers.
|
Size L (mm)
|
50 |
|
Size W (mm)
|
17 |
|
Size H (mm)
|
7 |
|
Box size L (mm)
|
510 |
|
Box size W (mm)
|
360 |
|
Box size H (mm)
|
310 |
|
Guarantee
|
5 years |
|
Box mass (kg)
|
21.4 |
|
Quantity per box (pcs)
|
3000 |
|
Color/color temperature (K)
|
White (7000K) |
|
Recommended location depth (mm)
|
40 |
|
Wire length (mm)
|
154 |
|
Distance between the centers of the modules in the chain (mm)
|
204 |
|
Pack mass (kg)
|
21.4 |
|
Quantity per pack (pcs)
|
200 |
|
Number of elements in the chain (pcs.)
|
20 |
|
Protection level
|
IP65 |
|
Angle of luminous flux (°)
|
175 |
|
Luminous flux (Lm)
|
155 |
|
Voltage (V)
|
12 |
|
LED Type
|
SMD3030 |
|
Diode count (psc)
|
2 |
|
Power (W)
|
1 |
