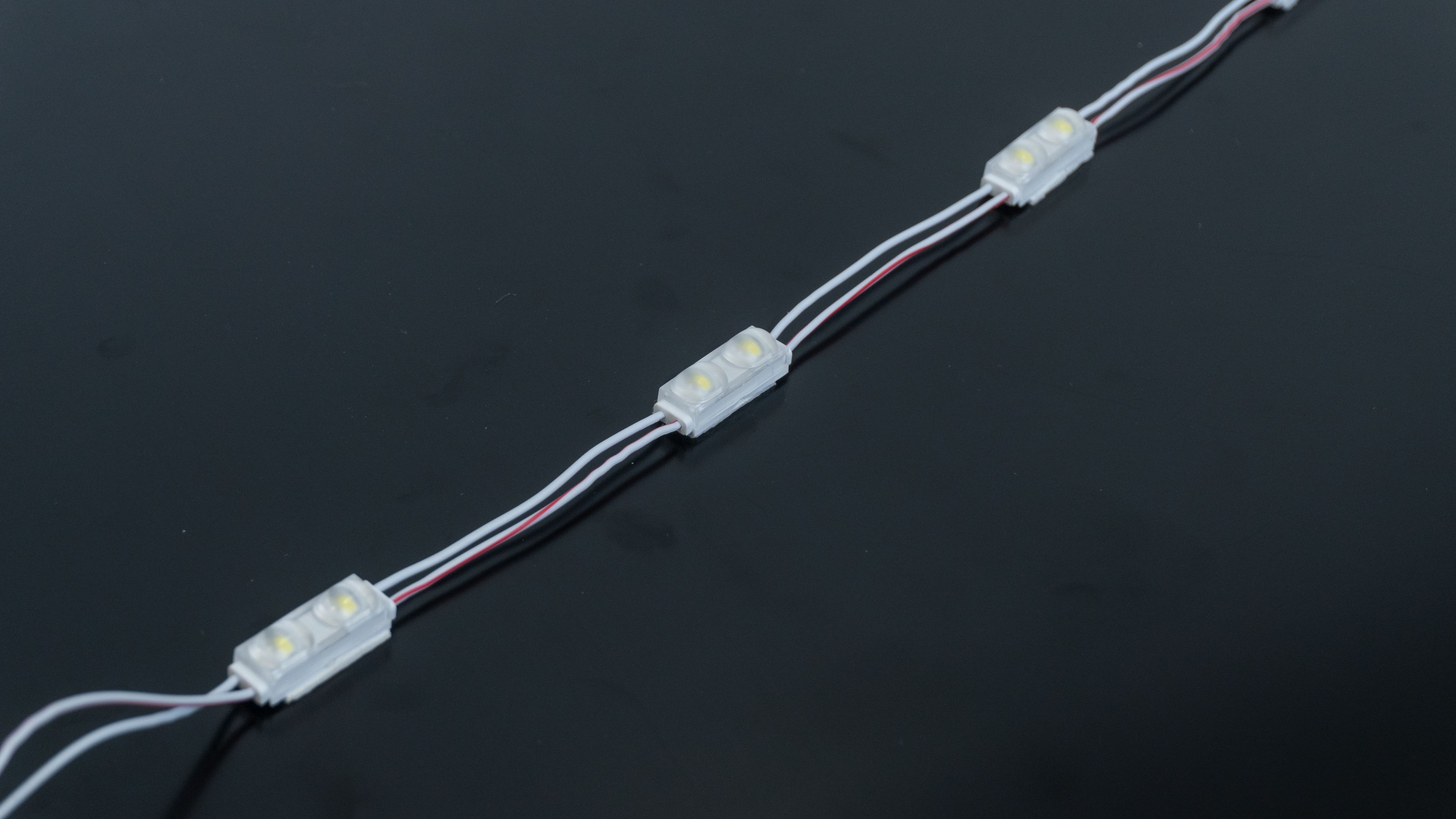

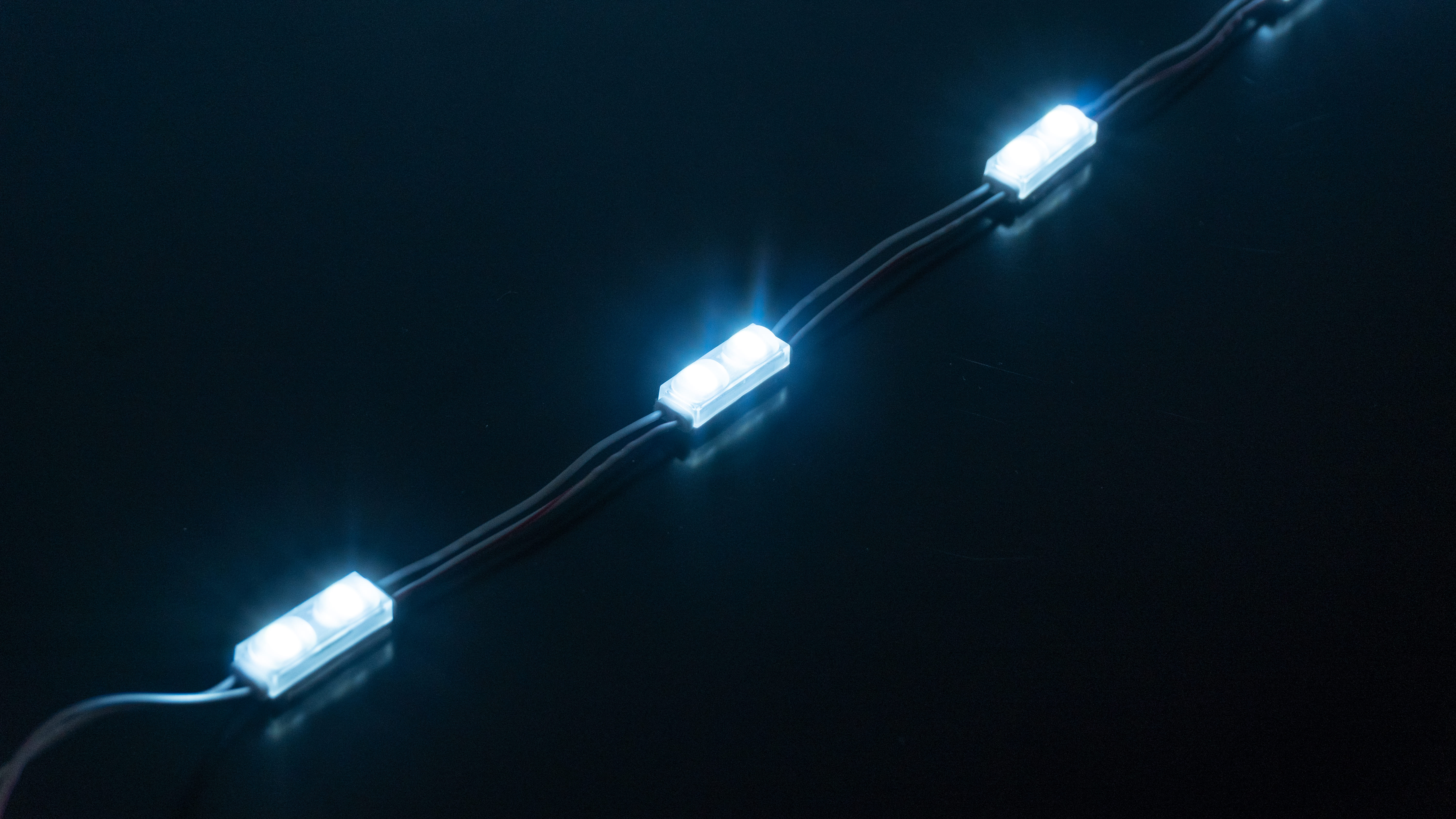

D-series lensed LED modules contain high brightness Epistar LEDs, are small in size and have a double dispersion angle of 120x140 degrees. They are suitable for the production of Illuminated 3D Signages and Letterboards.
These LED modules with lens are used to illuminate narrow, voluminous letters, complex fonts or certain places where no other module can fit.
Can be combined with other series to achieve better illumination results.
|
Size L (mm)
|
26 |
|
Size W (mm)
|
10 |
|
Size H (mm)
|
8 |
|
Box size L (mm)
|
510 |
|
Box size W (mm)
|
360 |
|
Box size H (mm)
|
310 |
|
Guarantee
|
3 months |
|
Box mass (kg)
|
21.6 |
|
Quantity per box (pcs)
|
8000 |
|
Color/color temperature (K)
|
Cold white (9000К) |
|
Recommended location depth (mm)
|
40 |
|
Wire length (mm)
|
70 |
|
Distance between the centers of the modules in the chain (mm)
|
87 |
|
Pack mass (kg)
|
0.91 |
|
Quantity per pack (pcs)
|
400 |
|
Number of elements in the chain (pcs.)
|
20 |
|
Protection level
|
IP67 |
|
Angle of luminous flux (°)
|
120°*140° |
|
Luminous flux (Lm)
|
54 |
|
Voltage (V)
|
12 |
|
LED Type
|
SMD2835 |
|
Diode count (psc)
|
2 |
|
Power (W)
|
0.8 |
